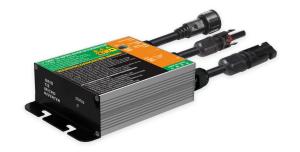

Single Phase Solar Micro Inverter 1000W Grid Tied Residential Use

Name: Single Phase Solar Micro Inverter 1000W Grid Tied Residential Use
Brand: MITSCN
Price: 1 USD

Wholesale Single Phase Solar Micro Inverter 1000W Grid Tied Residential Use from china suppliers

Brand Name : MITSCN

Model Number : GMI120L

Certification : CE,IEC,EN

Place of Origin : CHINA

MOQ : negotiable

Price : negotiable

Payment Terms : T/T, L/C, D/P

Supply Ability : 100pcs per day

Delivery Time : negotiable

Packaging Details : pallet, paper box

Contact Now

Model	GMI120L120VAC/230VAC
Number of Input MC4 Connector	1 set
MPPT Voltage Range	12.5V-25V
Operation Voltage Range	10.8V-30V
Maximum Input Voltage	30V
Startup Voltage	10.8V
Maximum Input Power	120W
Maximum Input Current	7.5A
Output Power	100W(Rated)/110W(Maximum)
Nominal Output Voltage &Current	Single-Phase @120VAC:0.83A /@230VAC:0.43A
Default Output Voltage Range	@120VAC:80V-160V /@230VAC:180V-280V
Default Output Frequency Range	@50Hz:47.5Hz-52.5Hz /@60Hz:57.5Hz-62.5Hz
Peak Efficiency	92.5%/MPPT 99.9%/PF>0.99
CEC Weighted Efficiency	@120VAC:90.5%/@230VAC:91.5%
Night Power Consumption	<700mW
Temperature Range	-40℃ to +65°℃(Ambient)/-40℃ to +85℃(Storage
Dimensions (W xH x D)/Weight	35mmx76mmx203mm/0.4kg
Waterproof Grade	IP55
Cooling Mode	Natural Convection -No Fans
Communication	None
Protection Functions	lsolated Island Protection,Voltage Protection, Frequency Protection,Temperature Protection,Current Protection,etc.

Single unit connects to one PV modules
Maximum 110W AC output power 
Single-phase output, Flexible 3-phase PV systems
Customizable various input (DC, PV) voltage range
Ready-To-Use
Low cost, Easy installation
